Roland Stika Desktop Cutters

Click Photos To Enlarge

Overview:

SpeedPress Sign Supplies - Roland Vinyl Cutters

Call For Discount Prices! (800) 647-7446

Ideal for small offices, schools and hobbyists, Roland STIKA vinyl cutters produce colorful POP displays, labels, and iron-ons. Creating custom vinyl graphics has never been faster or more affordable. Bundled CutStudio software lets users tile up to 16 designs and contour cut printed images.

Please Call for Discount Pricing!
800-647-7446

Summary | Features | Specifications

Summary:

Lightweight, compact design
Sheet Adjust Lever
USB connection
Roland CutStudio software included
Available in 8-, 12- and 15-inch widths

Features:

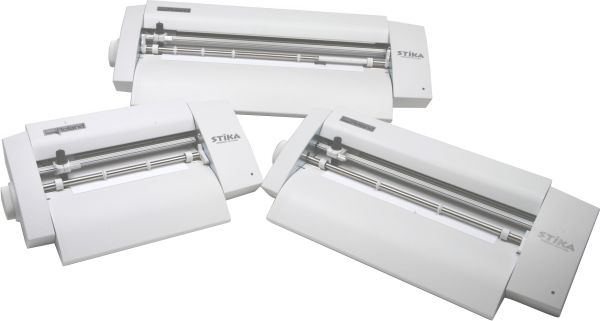

The STIKA comes in three models. The SV-8 accepts 8.5-inch wide media and cuts up to 6.2 inches wide. The SV-12 accepts 12-inch wide media and cuts up to 9.8 inches wide. The SV-15 accepts 12- or 15-inch media and cuts up to 13.3 inches wide. They all handle vinyl, paint mask, reflective vinyls, twill, heat transfer, and etching material.

In addition to cutting vinyl and other materials, the new STIKA makes an easy-to-use and cost-effective print/cut solution. Users print registration marks with their desktop printer, load the printed graphic into the cutter, send the file to the STIKA and it contour cuts the graphics. It’s perfect for creating colorful POP displays, and iron ons.

Every STIKA ships with Roland CutStudio. This powerful design software lets you reduce, re-position, rotate, tile and mirror images. It enlarges images as crisp as original size and cuts TrueType fonts without outlining. CutStudio also supports BMP, JPG, STX, AI, and EPS file formats. CorelDraw and Adobe Illustrator plug-ins are included for Windows 98/SE/ME/2000/XP as well as an Adobe Illustrator plug-in for Mac OS9 and higher.

With a convenient USB port, the STIKA offers plug-and-play capabilities for both Mac and PC systems. The USB cable is included!

Making professional-looking graphics is a snap with the STIKA. Simply design your graphics with bundled Roland CutStudio software, peel away the excess vinyl, and apply. It’s that easy. You can even contour cut printed graphics using your desktop printer and the STIKA driver.

Specifications:

MODEL	SV-15	SV-12	SV-8
Cutting method	Media-moving method
Maximum cutting area	13-3/8 (X) x 39-5/16” (Y) [340 (X) x 1000mm (Y)]	9-13/16 (X) x 39-5/16” (Y) [250 (X) x 1000mm (Y)]	6-1/4 (X) x 39-5/16” (Y) [160 (X) x 1000mm (Y)]
Acceptable sheet size*	Width: 14-1/8 to 15” (360 to 381 mm) Width: 11 to 12” (280 to 305mm) Length: 43-1/4” (1100mm) or less	Width: 11 to 12” (280 to 305mm) Length: 43-1/4” (1100mm) or less	Width: 7-13/16 to 8-7/16” (200 to 215mm) Length: 43-1/4” (1100mm) or less
Cutting speed	7/16 to 3-7/8ips. (12 to 100 mm/sec.)	7/16 to 1-9/16ips (12 to 40 mm/sec.)	7/16 to 1-9/16ips (12 to 40 mm/sec.)
Acceptable material	PVC or label material of 0.004” (0.1 mm) or less in thickness. Total material thickness including the backing of 0.012” (0.3 mm) or less
Interface**	>USB 1.1
Power supply	Dedicated AC adapter input: AC 100V +/- 10%, 50/60Hz 1.7A Output: DC 19 V 2.1 A
External dimensions	20-5/8(W) x 8-1/8(D) x 4-1/2”(H) [522(W) x 205(D) x 115(H)mm]	17-3/8(W) x 8-1/8(D) x 4-1/2”(H) [440(W) x 205(D) x 115(H)mm]	13-3/8(W) x 8-1/8(D) x 4-1/2”(H) [340(W) x 205(D) x 115(H)mm]
Power consumption	Aprox. 20W (including AC adapter)
Weight (unit only)	7.3 lb [3.3 kg]	6 lb. [2.7 kg]	4.9 lb. [2.2kg] <
Acoustic noise level	60 dB (A) or less (According to ISO 7779)
Operating environment	Temperature: 41 to 104 °F [5 to 40 °C] Humidity: 35 to 80% non-condensing
Included items	AC adapter, power cord, USB cable, replaceable blade protector, blade, blade holder, pin, material for test cuts, application tape for test cuts, Roland Software Package CD-ROM (CutStudio design software, plug-ins for CorelDraw 10, 11,12 and Adobe Illustrator 9, 10, CS, Stika Windows Navi utility), SV-15/12/8 user's manual
Depending on the type of material, lengths longer than 19-5/8” [500mm] may shift during cutting. *Compatible with Windows 98 SE/Me/2000/XP and Mac OS 9 or later.
