Overview:

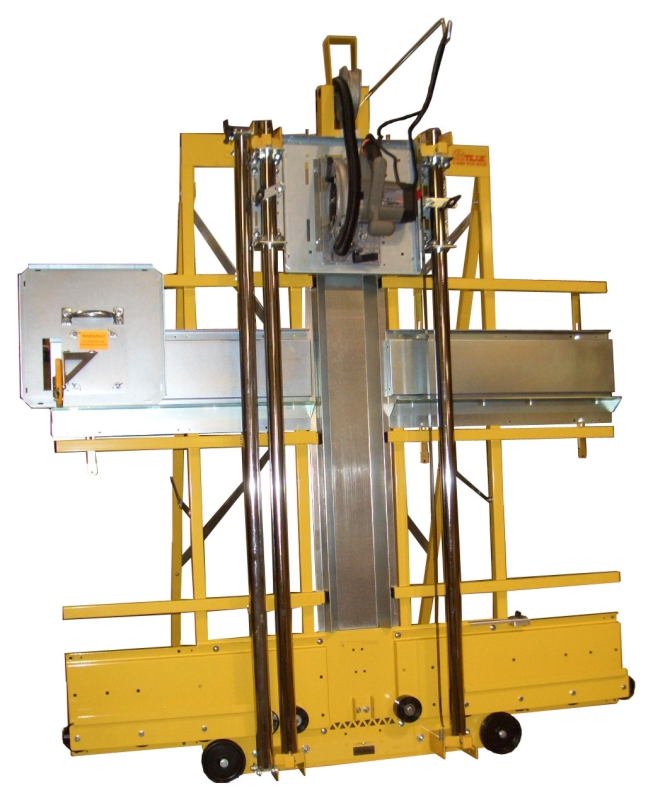

Sign shops cut a variety of materials, this panel saw was created to fit your specialized needs. You no longer need to buy a panel saw & a mat cutter. You can have both in one machine.

Perfect for space restricted shops or to take to the jobsite. You will have all the capabilities of a larger saw packed into a smaller space efficient frame. This machine is expandable in both length & height, which means that this saw can change with your needs.

Features:

• Rip cut in either direction.
• Can use floating router or knife in same carriage.
• Bevel cut up to 45 degrees.
• Score or vary depth of cut of saw.
• 2 carriage locks ensure no play when ripping or routing.
• Easily expandable frame width or height.
• More material support rollers than comparable machine.
• Never Goes Out of Square, Accu-Square® adjustment material rollers can be raised so cuts can be started from the bottom to prevent shattering of thin plastics.

Specifications:

Alignment System	Patented Accu-Square® System
Saw Replacement	Off the shelf, limited down time.
Bearing System	Sealed Roller Bearings
Router Capable Carriage	Floating Router Insert Available
Razor Knife Capable Carriage?	Yes, use as a mat cutter.
Guide Tube	Nickel Chromed. Better action, longer wear.
Retraction Cable	Off-Set
Blade Change	Tool-less, under a minute.
Material Rollers	10, never need adjustment.
Cross & Rip Cut	52" Cross Cut/ Unlimited Rip
Blade	7.25" - Easily Found
Depth of Cut	1.75"
Bevel / Adjust depth	Bevel & adjust depth.
Saw	15 Amp Saw
Folding Stand	Folds like a ladder, takes one person to move, attached at factory.
Wheels	5" Included with stand.
Dual Rip Gauge	Standard
Stop, Bar & Tapes	Standard
Carriage Locks	2
Dust Collection	Standard Includes a Dust Shroud Brush
